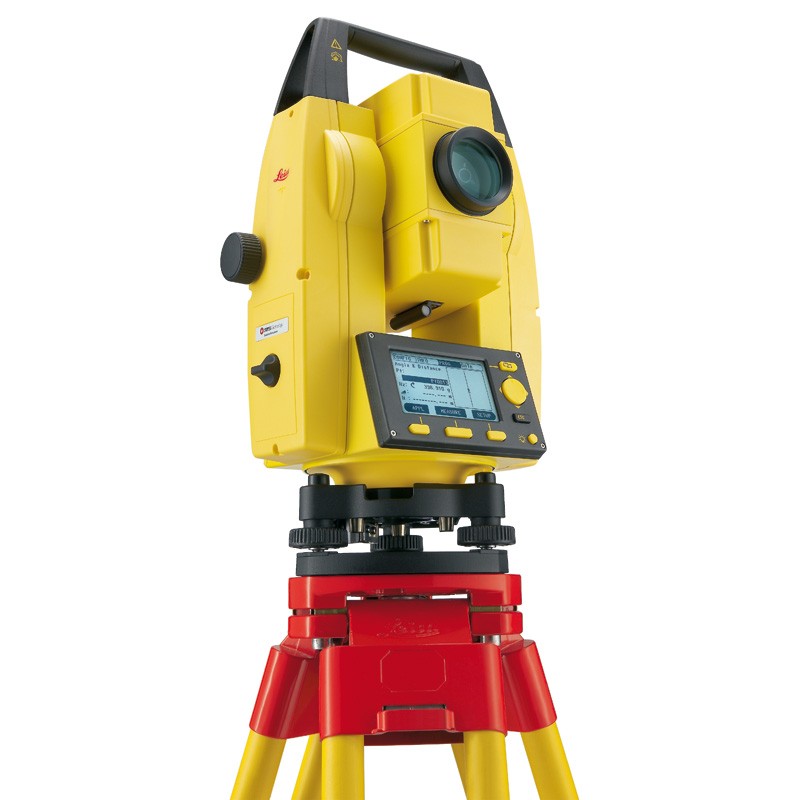

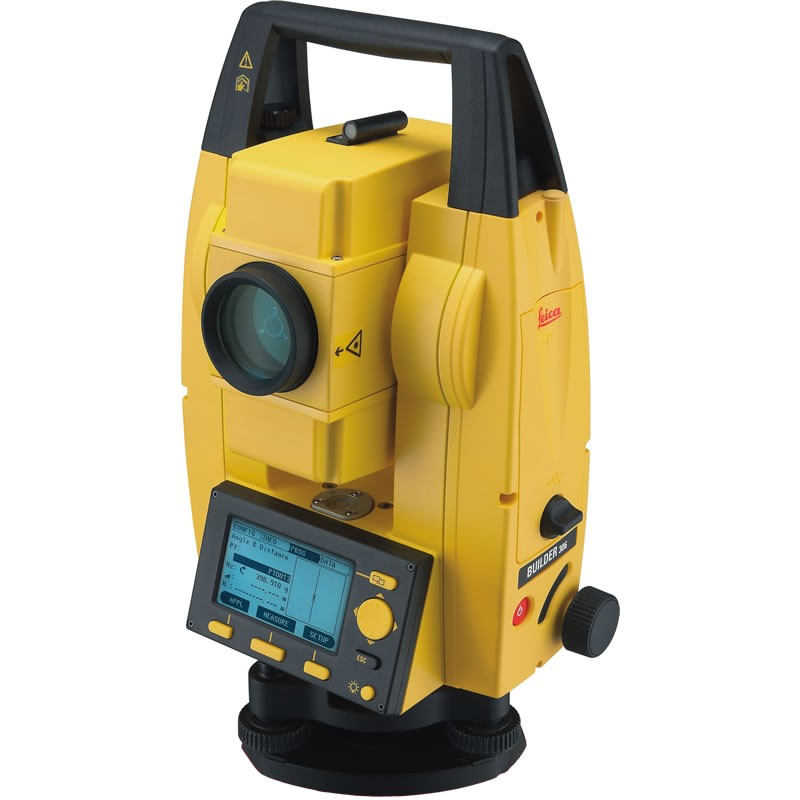

Leica Builder 300

Total Station

Instument

Price: 6xxx$ 6,500$

Leica Builder 300 - when a construction plan goes digital.
Call up plan data and record points eliminates read and write errors, data exchange via industrial grade USB stick simplifies data handling, a direct DXF download function, tracking mode, setup any-where function, optional volumes calculation and laser distance measurements up to 120m/400ft make the Leica Builder 300 a real workhorse.

All Builder Series models are delivered packaged in Sets for out-of-the-box usage.

Leica Builder Specifications	Builder 100	Builder 200	Builder 300	Builder 400	Builder 500
Full Power Site Software					✔
Wireless Communication					✔
Prism Measurement Mode				✔	✔
Full alphanumeric keyboard				✔	✔
Volumes Calculation			✔	✔	✔
Data Im/Export to USB Stick			✔	✔	✔
PC/Handheld Interface		✔	✔	✔	✔
Laser Distance Measure		✔	✔	✔	✔
Control Line Setup		✔	✔	✔	✔
3 Languages	✔	✔	✔	✔	✔
Leveling Aid	✔	✔	✔	✔	✔
Dual Axis Compensator	✔	✔	✔	✔	✔
Laser Plummet	✔	✔	✔	✔	✔
Li-Ion Batteries	✔	✔	✔	✔	✔
Internal Memory [points]			15'000	50'000	50'000
Angular Accuracy	9'', 6''	9'', 6''	9'', 6''	9'', 5''	9'', 5'', 3''
Distance without Reflector (90% Reflective)		80 m	120 m	15 m	250 m
Distance to Reflective Tape (60mm x 60mm)		250 m	250 m	15 m	250 m
Distance to Glass Prism				500 (3500) m	500 (3500) m
